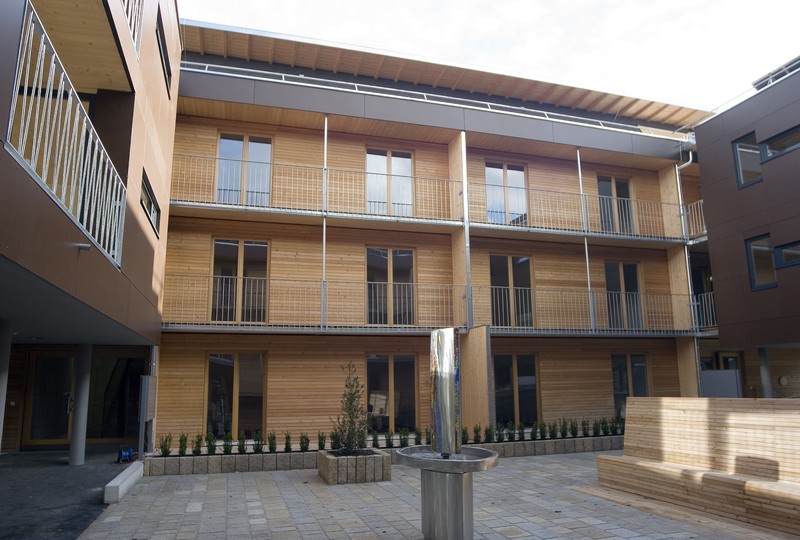

Schützenstrasse
Austria 2006 | 34 flats 4-storeys

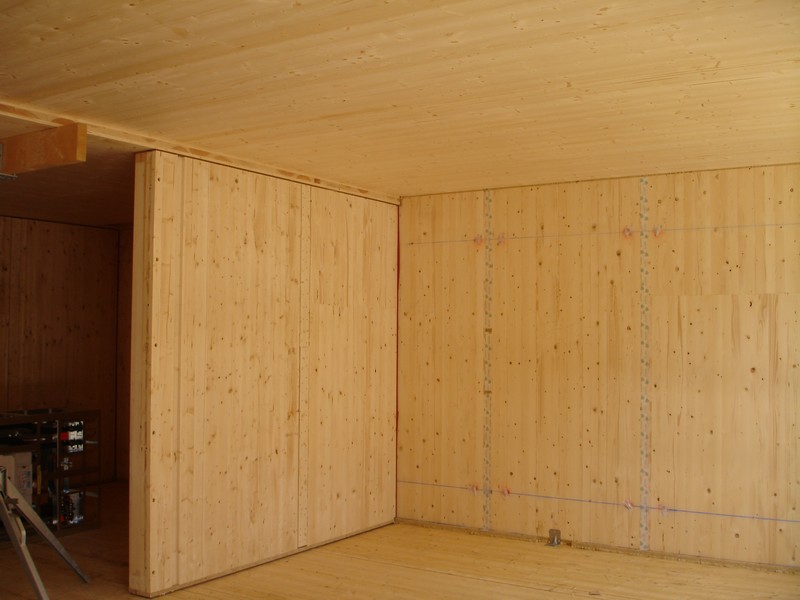

BBS inner walls
3-layers 80 mm, spruce non-visible,
able to carry a load and stiffened, R30
BBS partition walls
3-layers 80 mm, spruce non-visible, 2 shelled,
able to carry a load and stiffened, R30

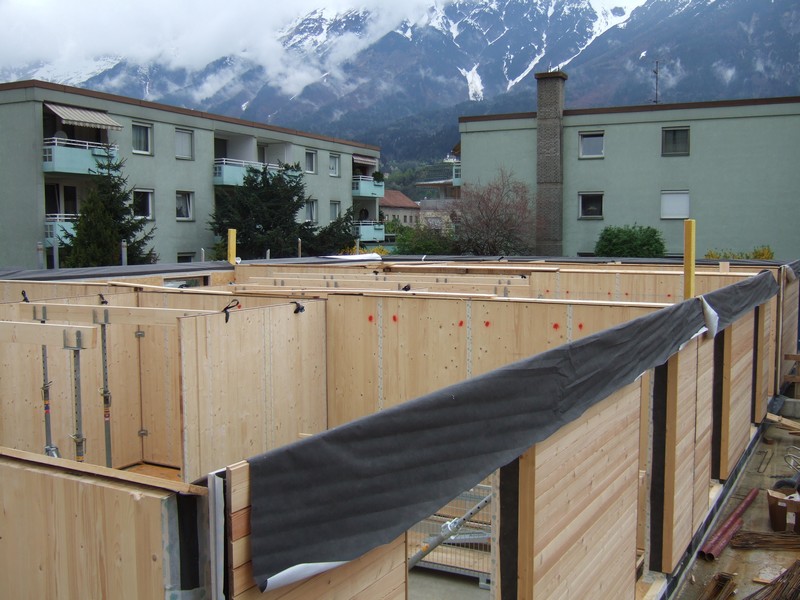

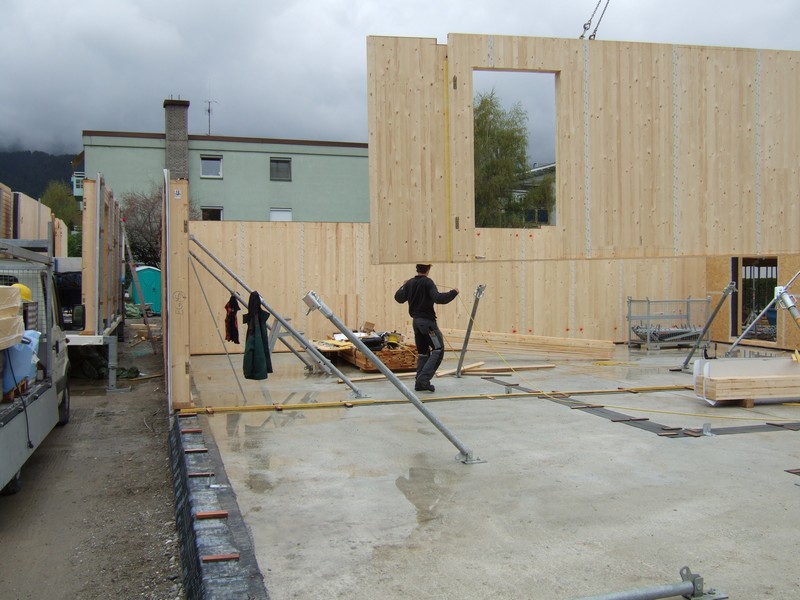

The BBS walls were delivered to the executing company as unprocessed goods, cut by them, large-sized erection ready pre-erected and delivered to the building site. The partition walls between the flats were 2 shelled prefabricated.

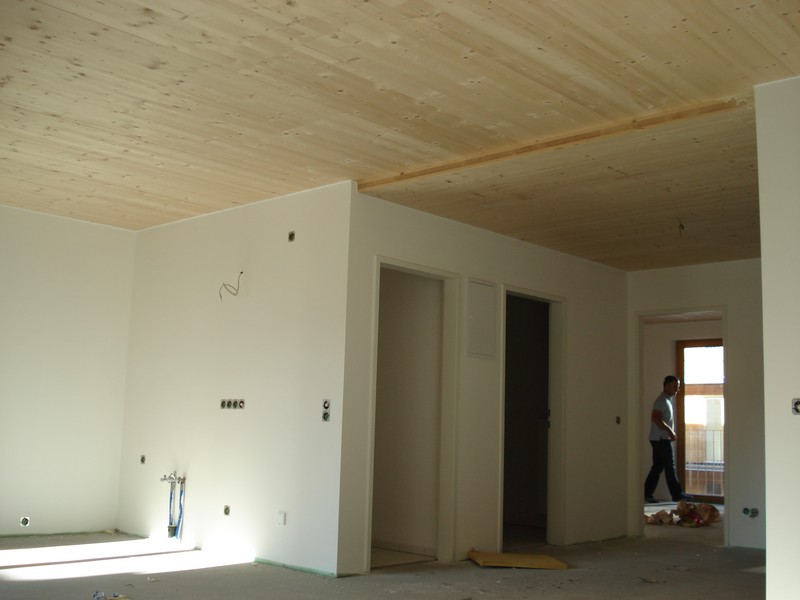

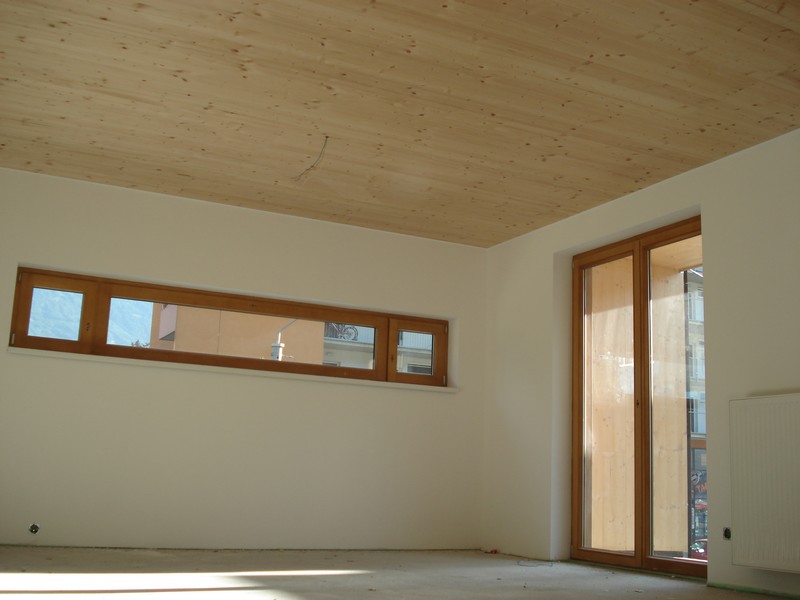

BBS ceilings
5-layers 138 mm, underside spruce for use in living areas AB
BBS ceiling joist
3-layers 78 mm, underside spruce for use in living areas AB

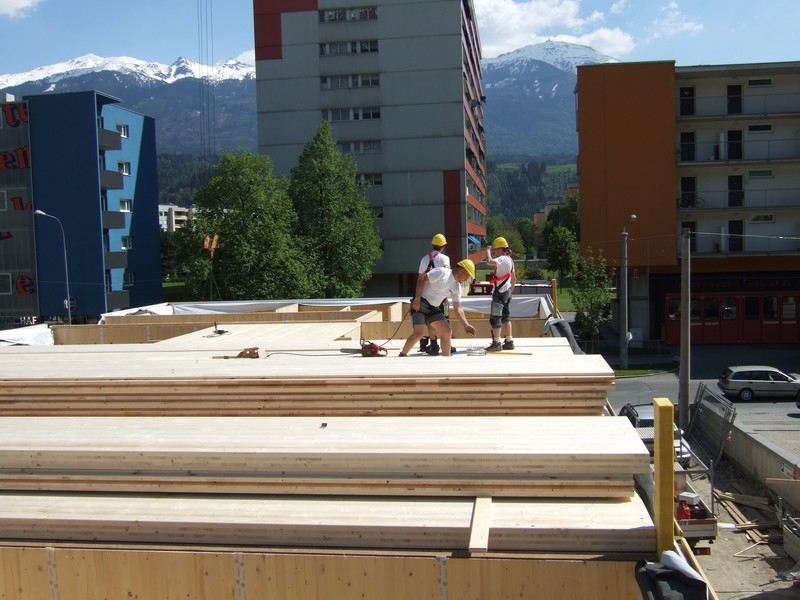

The BBS ceilings were cut ready for mounting in the BBS factory and delivered directly to the building site.

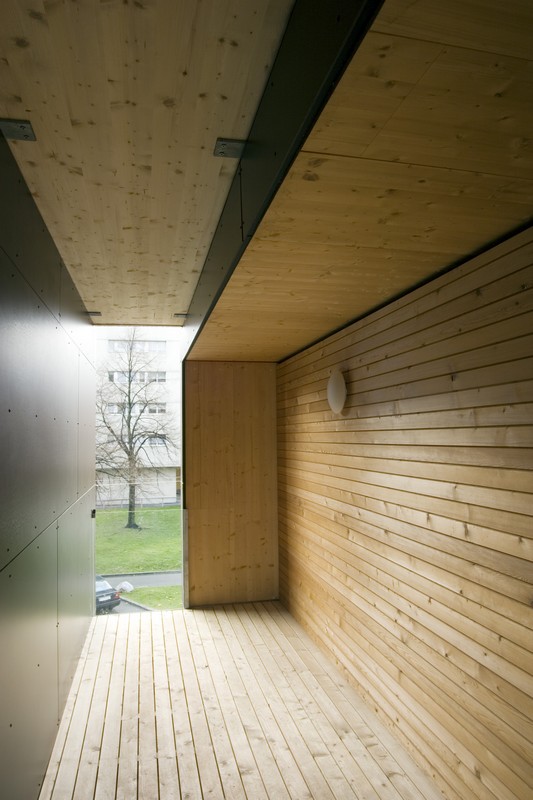

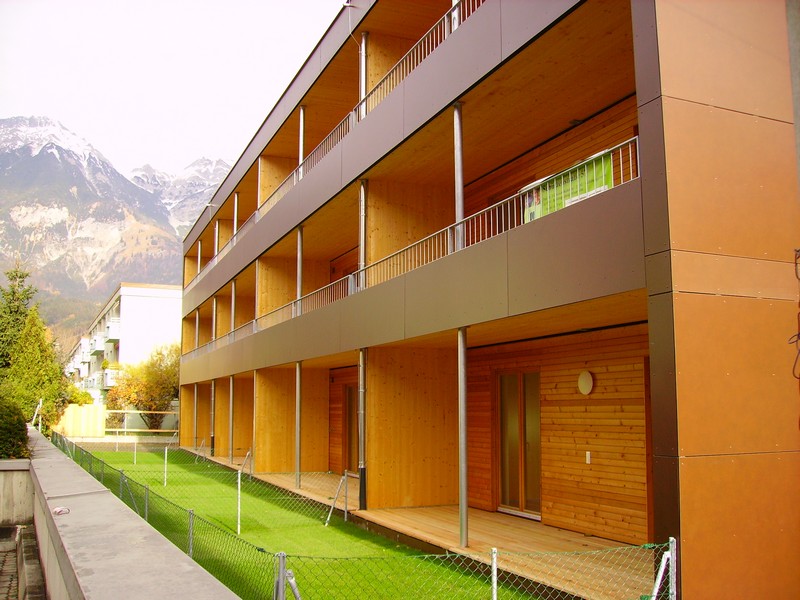

BBS balcony floors
5-layers, spruce one-sided for use in living areas AB
BBS balcony partition wall
3-layers, spruce double-sided for use in living areas AB

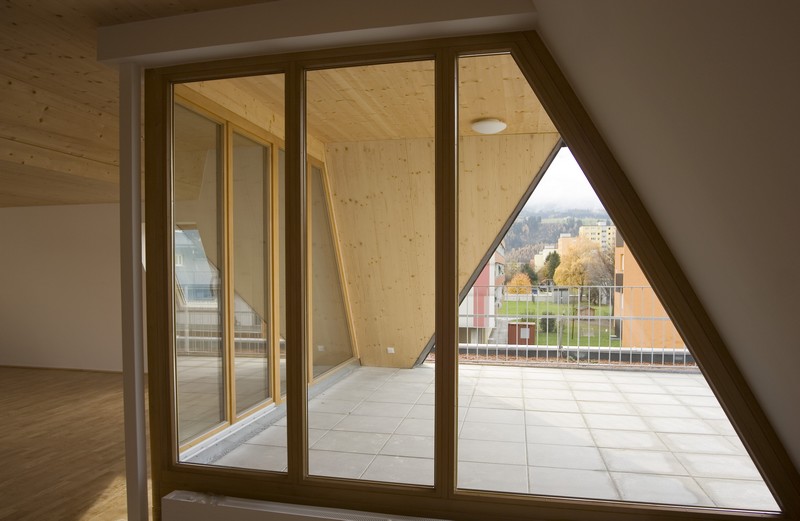

BBS outer walls top floor
5-layers 98 mm, spruce non-visible
BBS roof
5-layers 138 mm, underside spruce for use in living areas AB
Erecting time
1 day per flat
Sound insulation
Before building work starts, a 2 storey test building made of BBS was built in the executing company with all connection details in the scale of 1:1. The partition walls between flats and ceilings were tested for sound insulation and different constructions were investigated with a positive result.
Architecture: www.reitter.cc
General transferee and executor: www.schafferer.at
Static: www.dibral.at
