Connections

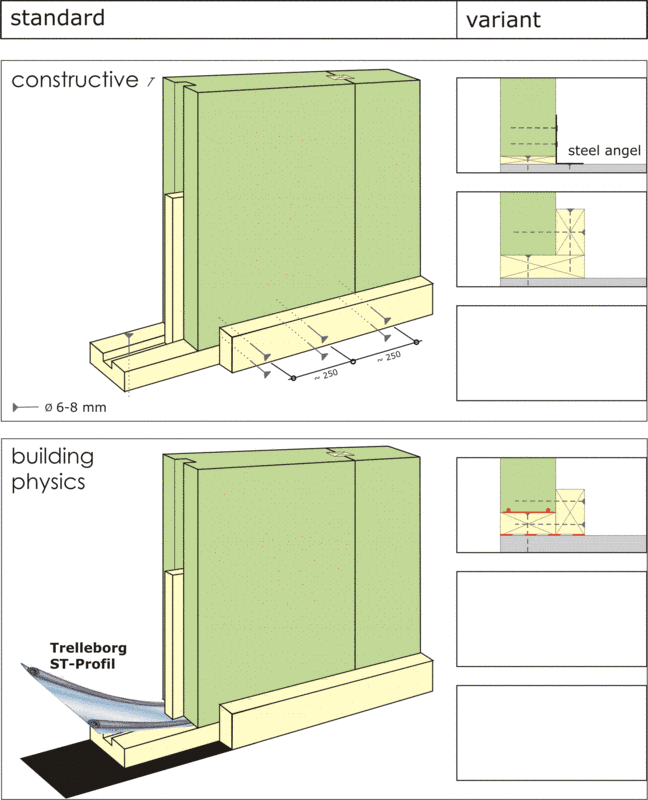

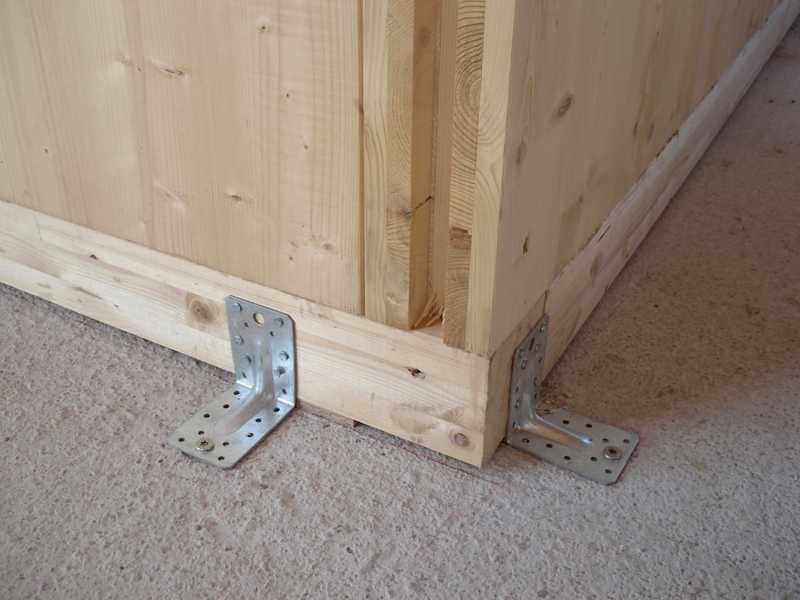

BBS wall, concrete ceiling
Erecting element for element on the building site
The walls are erected onto a planed larch beam, which evens out the concrete ceiling. The wooden beam has a groove in the middle, into which the external tongue of the wall element is inserted. Thus, a simple and fast erection is guaranteed. Sound decoupling and seal again with an EPDM profile. Screwing takes place in accordance with static requirements and the sealing of the connection grooves in accordance with building physical requirements.
BBS wall, concrete ceiling, and BBS ceilings respectively

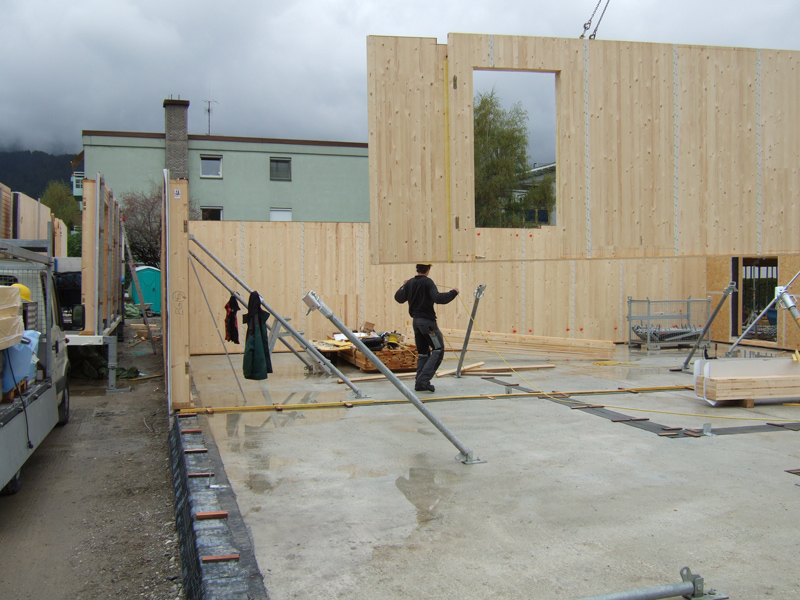

Erection of a prefabricated, complete wall
In this case, the timber construction company processes cut-optimised, large-sized walls from unprocessed BBS, mostly including insulation, facade, and electrical installation. The complete BBS wall is attached with steel brackets to the ceiling. The screwing takes place in accordance with static requirements and the sealing of the connection grooves in accordance with building physical requirements.

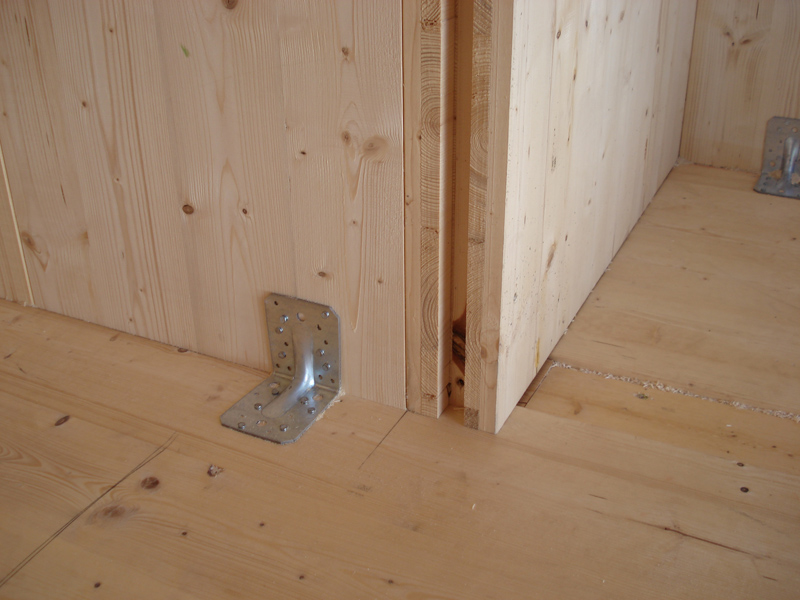

BBS wall, BBS ceiling
Erecting element for element on the building site
The walls are erected directly onto the ceiling. In order to simplify erection, you can work with a straightening rod. The individual wall elements are fixed on the narrow side with two screws to the BBS ceiling. Then the external tongue is affixed and the next wall element is erected. This is again fixed to the ceiling on the narrow side by means of 2 screws. After erecting the whole wall, the wall elements are tightly screwed to the ceiling from the inside. The screwing takes place in accordance with static requirements and the sealing of the connection grooves in accordance with building physical requirements.

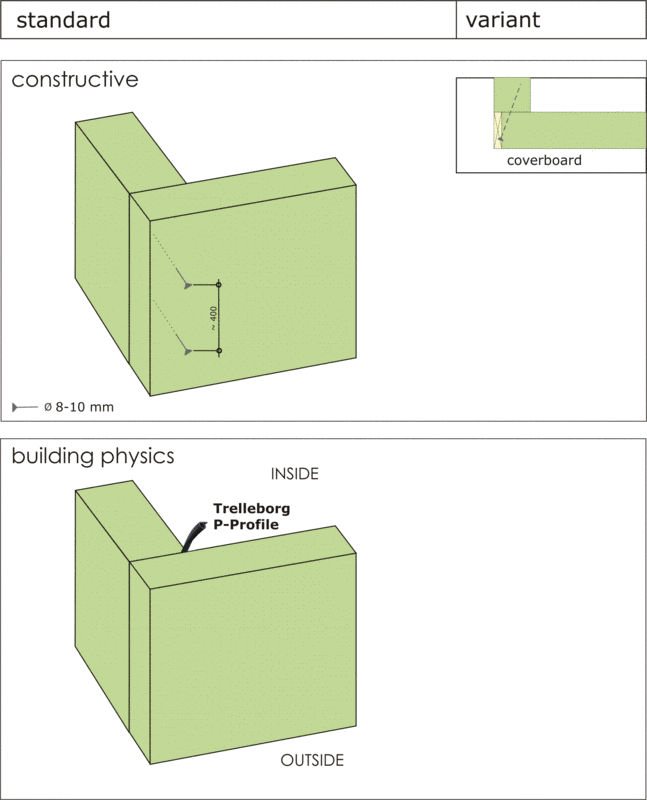

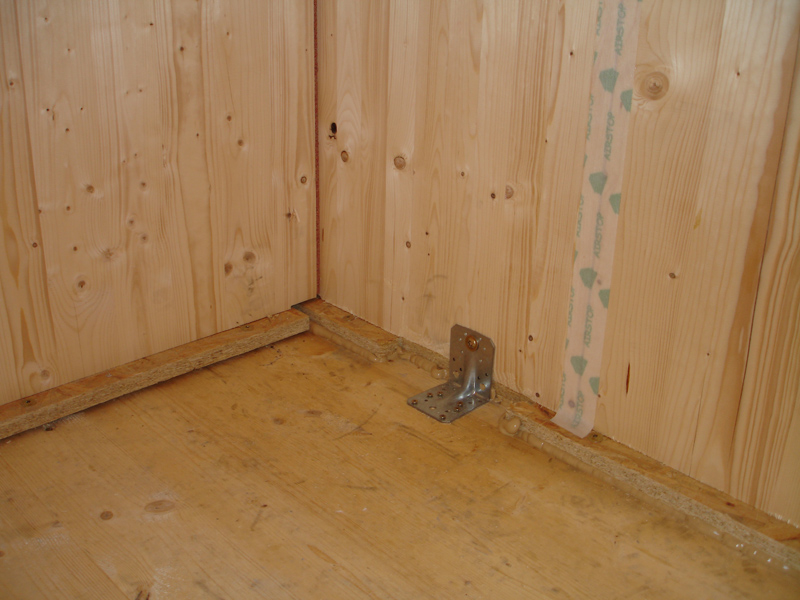

BBS wall | Corner Construction
The walls are butt-jointed on the corners. For sealing purposes, an EPDM band is inserted and the elements are tightly screwed together. The screwing takes place in accordance with static requirements and the sealing of the connection grooves in accordance with building physical requirements.
